The Lotus Excel water pump parts listed below are suit all models manufactured between 1980 and 1992.
Please note, the parts displayed here are not a limitation of what can be provided.
If you need a component that is not shown or you are unsure which part or accessory you need, then please contact Lotus Marques.
When placing a parts order, one of the most convenient and secure payment options is PayPal.

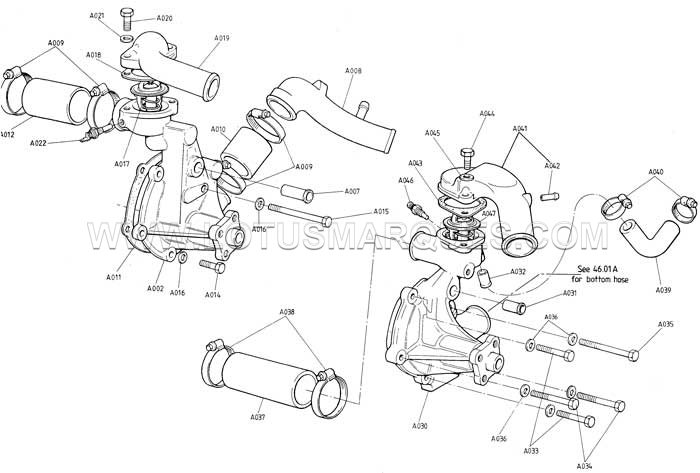

| Lotus Excel water pump parts |
||||
| Image | Description | Part Number | Comments | Price plus GST |
 |
Temperature gauge transmitter unit (prior to 85 MY) | A050M6136W | Item #A022 | $19.50 |
| Hose clamp | A079K6019F | Item #A009 | $4.50 | |
| Hose | B907E0487Z | Item #A010 | $8.00 | |
| Water pump gasket | A907E0246Z | Item #A011 | $5.80 | |
| Hose - water pump to inlet manifold | A907E1319F | Item #A012 | $10.00 | |
 |
Thermostat 74 degree (hot climates) | A075K0121F | Item #A017 | $10.30 |
| Hose - water pump to inlet manifold | A912E1896F | Item #A037 | $12.00 | |
| Thermostat gasket | A26E6102Z | Item #A018 | $1.50 | |
| Bolt 6mm x 30mm | A075W2028Z | Item #A033 | $0.45 | |
| Bolt 6mm x 40mm | A075W2029Z | Item #A034 | $0.55 | |
| Bolt 6mm x 55mm | A075W2034Z | Item #A035 | $0.65 | |
| Flat washer 6mm x 12mm | A075W4013Z | Item #A036 | $0.10 | |
 |
Rubber elbow - water pump to cylinder head | A912E1837F | Item #A039 | $8.35 |
| Hose clamp - rubber elbow | A079K6018F | Item #A040 | $3.00 | |
 |
Water pump bearing 0.625/0.472 | $30.00 | ||
 |
Water pump bearing 0.625/0.500 | $25.00 | ||
 |
Water pump ceramic seal | $12.50 | ||
| Water pump rebuild service - includes new bearing, new ceramic seal upgrade, clean, reassembly, quality/performance test (50 psi pressure test), two year warranty For more information, see data sheet here |
$150.00 | |||
| NOTE- Some of the above prices maybe subject to currency exchange rate fluctuation if the parts are imported. Please check pricing when ordering from Lotus Marques. | ||||
